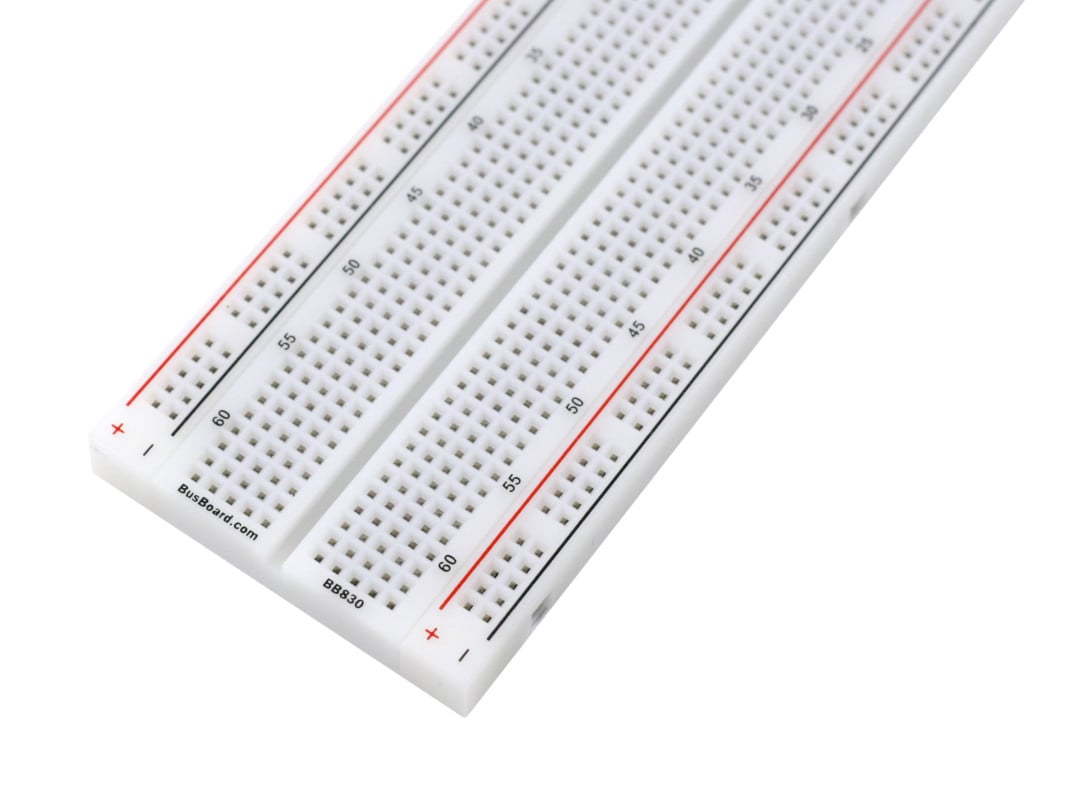

BB830 Solderless BreadBoard

Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed. They are completely re-usable.

• 830 tie points total: 630 tie-point IC-circuit area plus two 100 tie-point distribution strips providing 4 power rails.

• Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions.

• Rated at 36 Volts, 2 Amps.

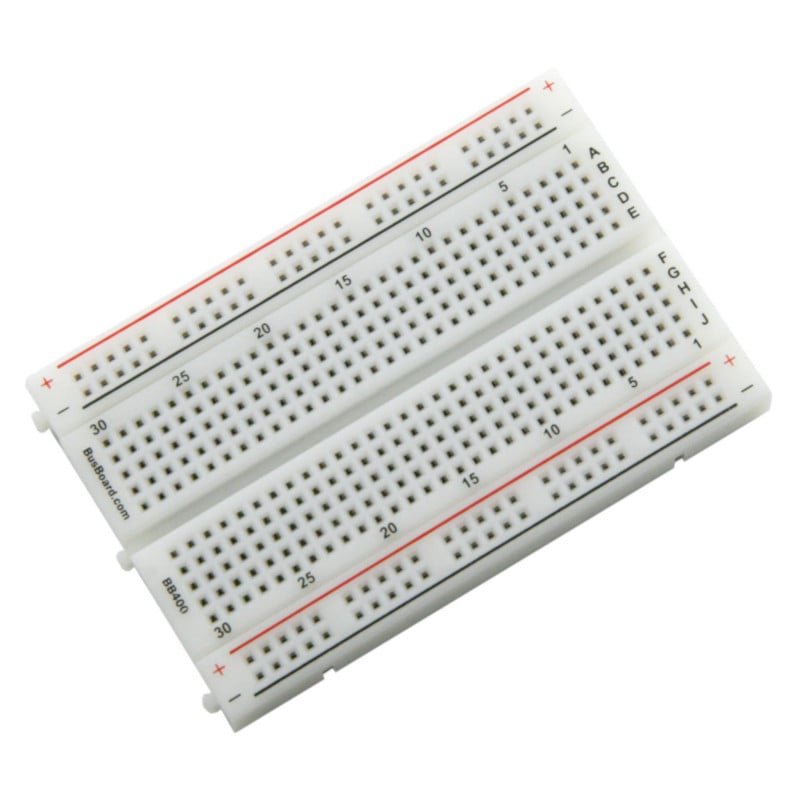

BB400 Solderless BreadBoard

Perfect for compact projects, portables, and tight enclosures. Daisy-chain several together for modular sub-circuits.

• 400 tie points total: 300 tie-point IC-circuit area plus two 50 tie-point distribution strips providing 4 power rails.

• Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions.

• Rated at 36 Volts, 2 Amps.

BB1660M Modular BreadBoard

Modular BreadBoards work well for IoT and microcontroller prototyping, allowing you to move the power rails to the best location for high-current power circuits. Separate adhesive backing allows you to put one side on a chassis and the other inside a control box.

• Extra BB100R power rails available.

• 1560 tie points total: 1260 tie-point IC-circuit area plus six 50 tie-point distribution strips providing power rails.

• Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions.

• Rated at 36 Volts, 2 Amps.

• Use the half-size BB400M with BB50R power rails for a smaller footprint.

SB830 Solderable PCB BreadBoard

Transfer your circuit and wires from a plug-in breadboard without recutting wires or changing your layout with the Solderable PCB BreadBoard for permanent 830 tie-point breadboard projects. Featuring a standard 5-hole strip for each IC pin with the advantage that a soldered joint provides a more reliable long-term connection than solderless contacts.

• Four power rails are provided along the edges like a breadboard, plus 2 bonus rails.

• Pads are connected with thinner 0.040” tracks for easier track cutting when required.

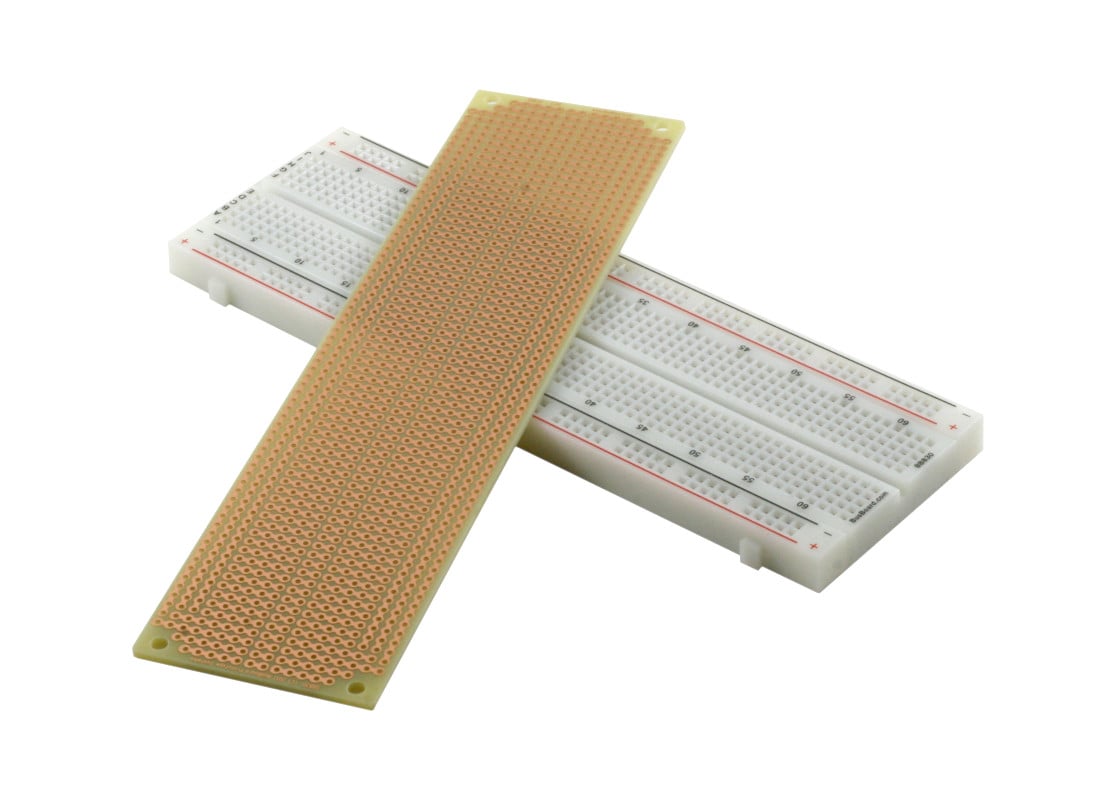

KIT-BB830+SB830

Design and test your circuit on the BB830, then transfer your circuit and wires from a plug-in breadboard without recutting or changing your layout. Pairing the solderless and solderable BreadBoards allows you to spend more time innovating and less time re-wiring.

ZipWire Jumper Wire Set

ZipWire™ provides a convenient way to connect the signals in your projects. The wires can be unzipped for individual wires as needed. The color-coding can be used to organize power, ground and other signal types to keep your circuit organized.

• Muti-color ribbon sets of different lengths, connections (M-M, F-F, M-F), and sets

• The rainbow colored ribbon cable provides the 10 standard electrical colors.

PR6H ProtoBoards Size 1, 2, and 3

The through hole ProtoBoard series gives you the usefulness of a StripBoard, with convenient pre-cut strips. It works well for analog op-amp layouts and digital logic circuits. It can be used with single in-line (SIL) sockets to allow development modules to be plugged in. Plated holes provide a stronger solder joint than with single-sided boards as the solder flows into the hole.

• Available in multiple interchangeable sizes get the exact size and pattern for your circuit.

• Positioning pads help locate holes, with corresponding square and round pads on the bottom.

• FR4 glass-epoxy base, anti-tarnish copper coating, with four 0.125" mounting holes

Power3U PowerBoard-3U

The POW3U provides the electrical wiring with interleaved power and ground rails for complex, multi-chip systems with clean power. The pre-drilled holes for ejector latches allow you to pop the board out of the rack without tugging on components.

• Accepts a 96 pin DIN-41612 VME connector for backplane or board-to-board connections.

• 0.1" hole spacing for DIP integrated circuits and headers.

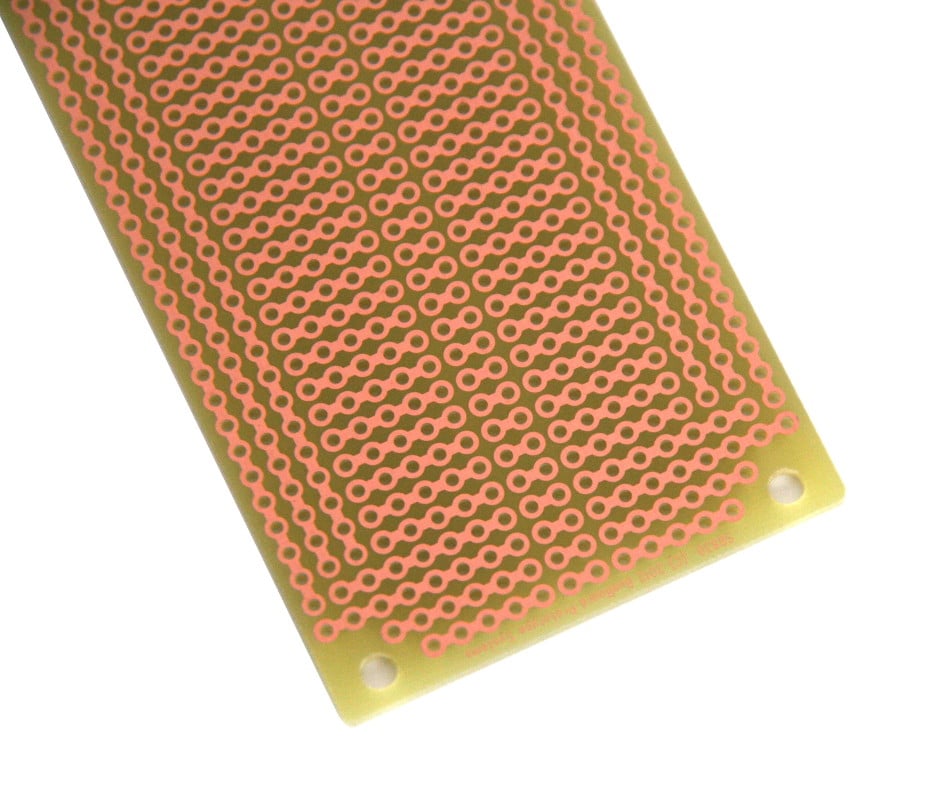

SMT3U SMTboard

This Surface Mount Prototype PCB is perfect for prototyping with 0805, 1206, SOIC, SOT and other SMT parts. The BusBoard zig-zag circuit pattern on the through hole area allows easy access to both sides of headers and ICs. A solid ground plane on the back side provides an easy way to make ground connections and helps lower noise for RF and high speed logic circuits. Every second SMT rectangle pad has an unplated hole for easy connection to the ground plane on the back side. Just insert a wire and solder both sides.

• Two power rails and four mounting holes are provided.

• 0.1” x 0.2 rectangular SMT pads for surface mount components. Three SOIC-32 footprints.

• Instead of SOIC footprints, the SMTpads protoboard line offers various pad pitches.

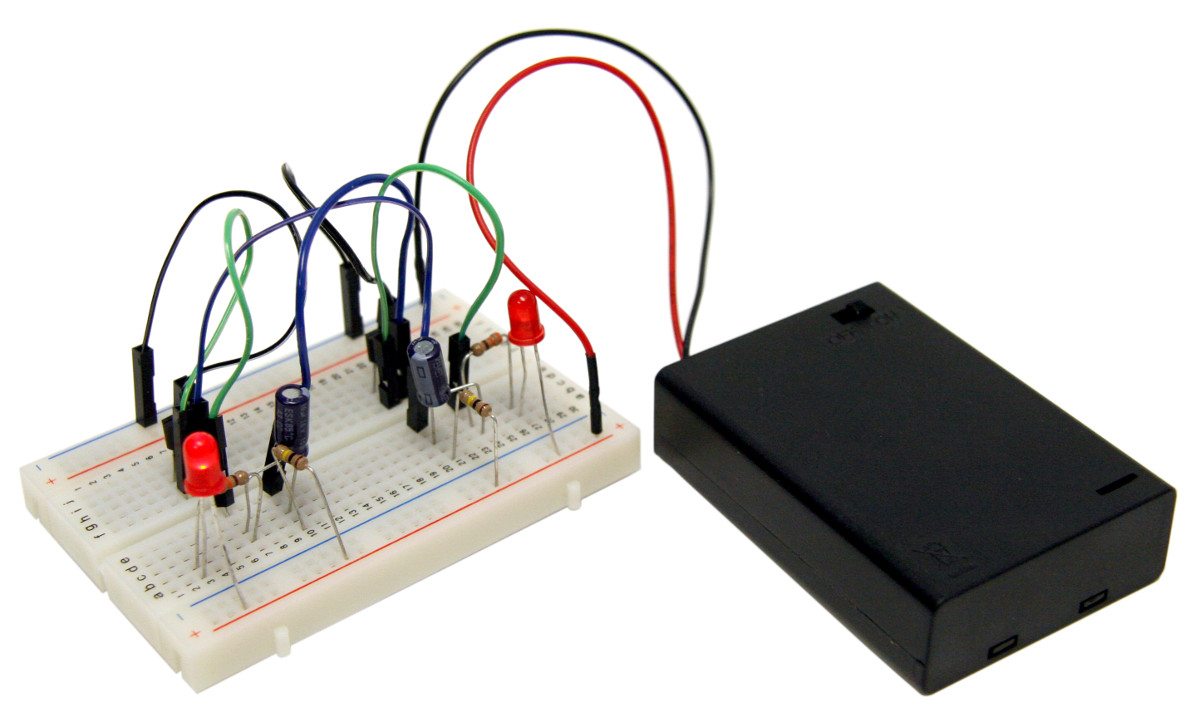

Junior Genius Kit

The only kit for entry-level engineers and hobbyists that use REAL components. These kits are built for experimentation, learning and fun! Experience the joy of seeing your first LED light up! The Blinky Lights Kit leads you through 10 main activities, from a simple LED circuit up to more advanced transistor LED blinky light circuits using standard parts on a real-world breadboard.

Learn about voltage and current by using LEDs, resistors, capacitors, and transistors. You'll be able to build circuits using a schematic diagram - and there's plenty of help to get you there. Simple examples make it easy to grasp the basics, and 'What's Happening?' and 'Things To Try' sections encourage you to dig deeper.
